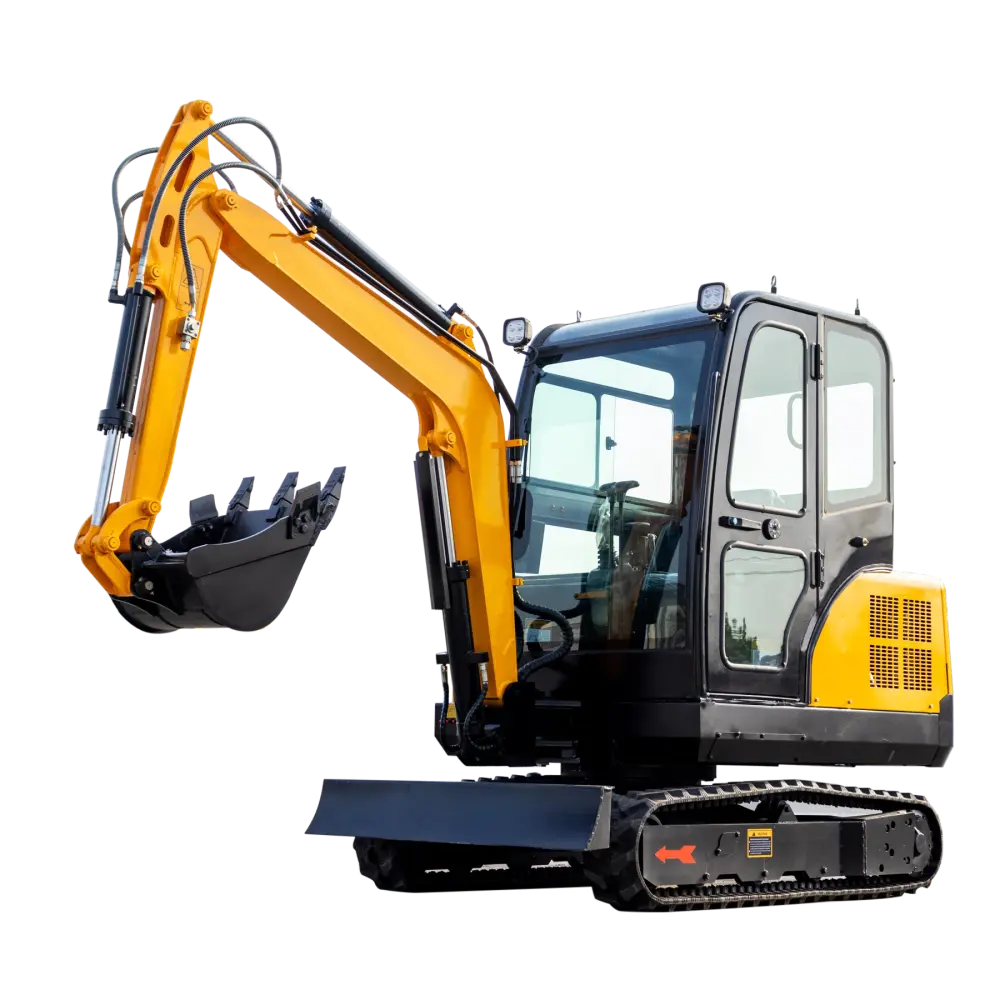

Mini Excavator HT30

Description

Overall size
Total length/transport length	4365mm
Overall width	1338mm
Upper width	1354mm
Overall height(cab roof)	2364mm
Standard track plate width	230mm
Track gauge	1090mm
Minimum ground clearance	197mm
Tail turning radius	1265mm
Track ground length	1570mm
Track length	1926mm
Shovel height	245mm
Shovel digging depth	300mm
Main parts
Engines	Kubota Engine
Swash plate type axial piston variable pump	Travelling motor
PVD-1B-32P-11G5	Eaton hydraulic motor + reducer
Displacement 16+16+10.5+4.5ml	Displacement 195
Maximum speed 2500r/min	Travelling speed 2.7km/h
PVD-1B-32P-11G5
Performance Parameters
Operating weight	3000KG
Bucket capacity M^3	0.036
Rated power	19KW/2250RPM
Slewing speed	10RMP
Climbing capacity	30°
Scope of work
Maximum digging height	3397mm
Maximum unloading height	2200mm
Maximum digging depth	2620mm
Maximum digging distance	4098mm
Minimum turning radius	2097mm
Maximum height at minimumturning radius	2781mm
Main parts
Main valve	DL40H30H0-d10L-4TH3TT-2YSYH2YSHY-3CGH3CHCCGCGHCGCHC
	Pressure 18Mpa
Main parts
Fuel tank	Capacity 38L
Cooling system	Capacity 5.05L
Hydraulic oil tank	Capacity 40L
